USA-Made Pressure Regulator for Plastic Tubing Extrusion

An ultra-low air pressure regulator controls the internal air pressure inside an extruded plastic tube as it exits the die. By maintaining precise air pressure — sometimes below 1 inch of water — the regulator supports the tube's shape and controls its outside diameter during free extrusion, preventing collapse or dimensional variation.

MicroAir regulators are available in pressure ranges from 0–2 inches of water up to 0–5 psi. Specific ranges include 0–3", 0–5", 0–10", 0–15", and 0–30" of water, as well as 0–3 psi and 0–5 psi. Range change kits are also available, and OLC offers a free range change service within 30 days of purchase.

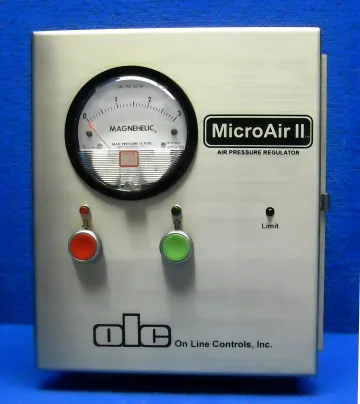

MicroAir I models offer manual control via a precision 30-turn adjustment knob. MicroAir II models add contact closure inputs for integration with O.D. gauges and diameter controllers. MicroAir IV models feature high-speed (less than 0.1 second) 0–10V analog or PLC input control, making them ideal for bump and taper tubing switching applications.

Yes. MicroAir IV models accept 0–10V analog input, allowing direct connection to a PLC or any other device providing a 0–10V signal. MicroAir II models accept contact closure inputs from O.D. gauges or diameter controllers. This makes them fully compatible with automated production line control systems.

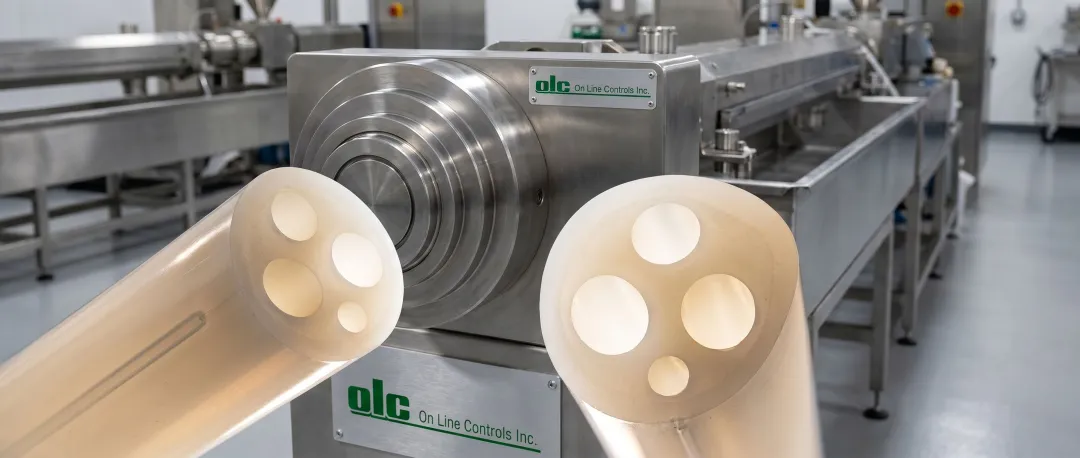

The number of channels should match the number of lumens in your tubing. OLC offers single, dual, 3-channel, and 4-channel MicroAir configurations. Multi-channel units allow independent pressure control for each lumen, and each channel can be set to a different pressure range with its own display and output option.

MicroAir regulators are built for a lifespan of 10 to 20 years under normal operating conditions. Every unit includes a three-year warranty covering parts and labor, plus unlimited phone support. Products are manufactured in Shrewsbury, Massachusetts and ship worldwide via UPS, DHL, or FedEx.
