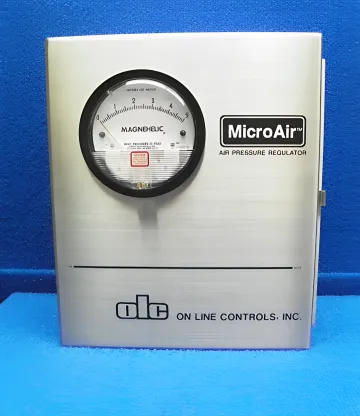

MicroAir Regulator for Catheter Tubing Extrusion

An air pressure regulator reduces and stabilizes incoming factory air (typically 45–65 psi) to a precise, ultra-low output pressure required by the process. MicroAir regulators use a spring-balance or voice-coil motor mechanism with viscostatic damping fluid to maintain a set output pressure, venting surplus air automatically to keep pressure constant even as flow rates vary.

MicroAir regulators are available in multiple pressure ranges from ultra-low (0–2 or 0–3 inches of water) up to 0–5 psi. The appropriate range depends on your tubing material, wall thickness, and extrusion line requirements. A Range Change Kit or service is also available if your process needs change after purchase.

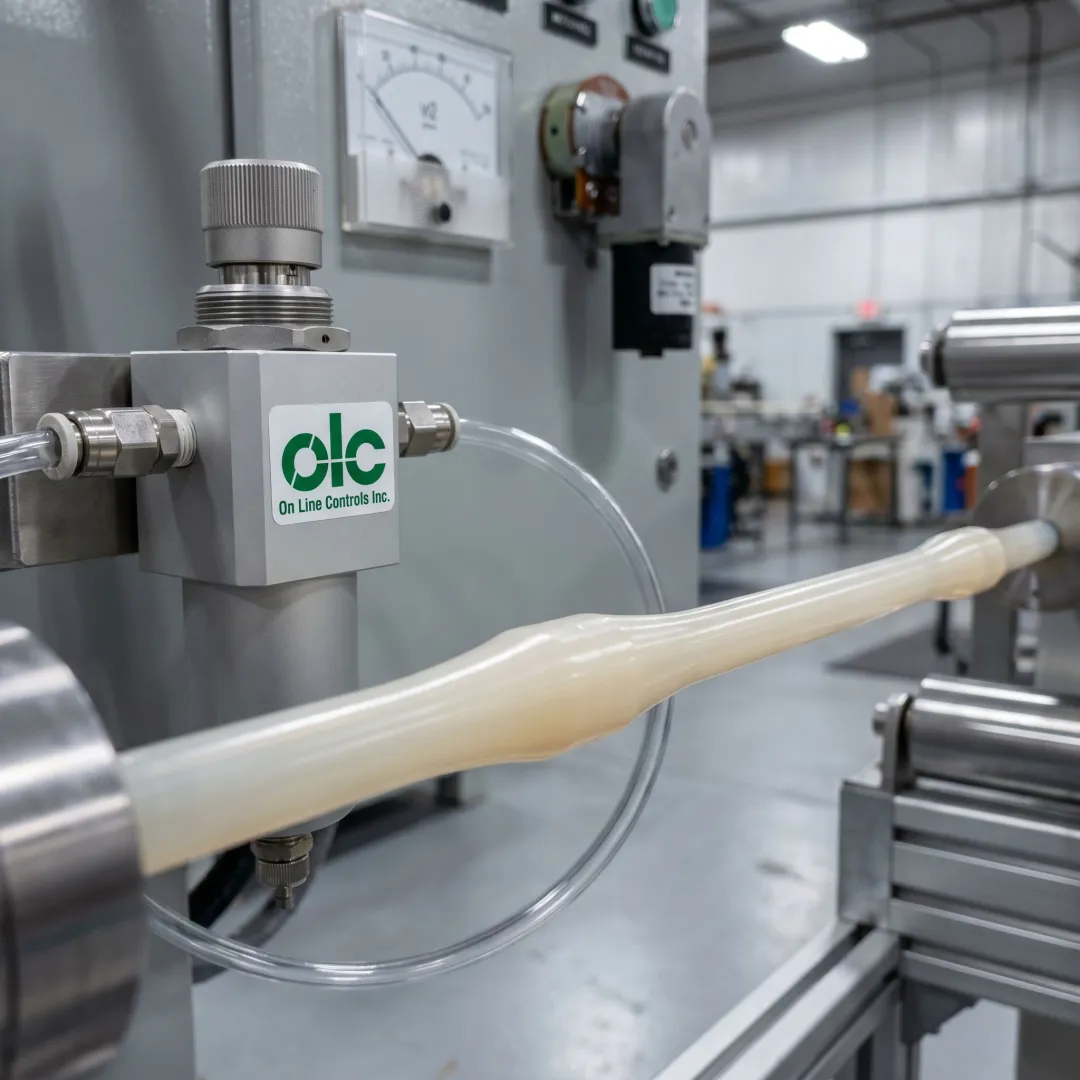

MicroAir I features manual control via a 30-turn knob for simple set-and-hold applications. MicroAir II adds contact closure inputs for integration with O.D. gauges or external controllers. MicroAir IV uses a 0–10V analog input with a high-speed voice-coil motor, enabling PLC control and rapid switching for bump and taper tubing, with response times under 0.1 second.

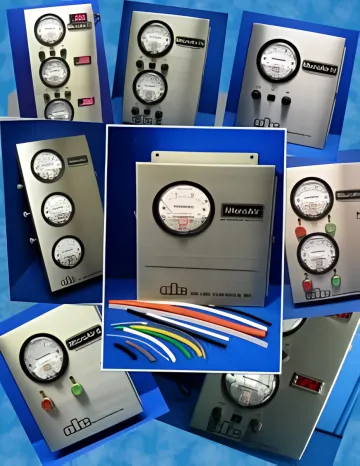

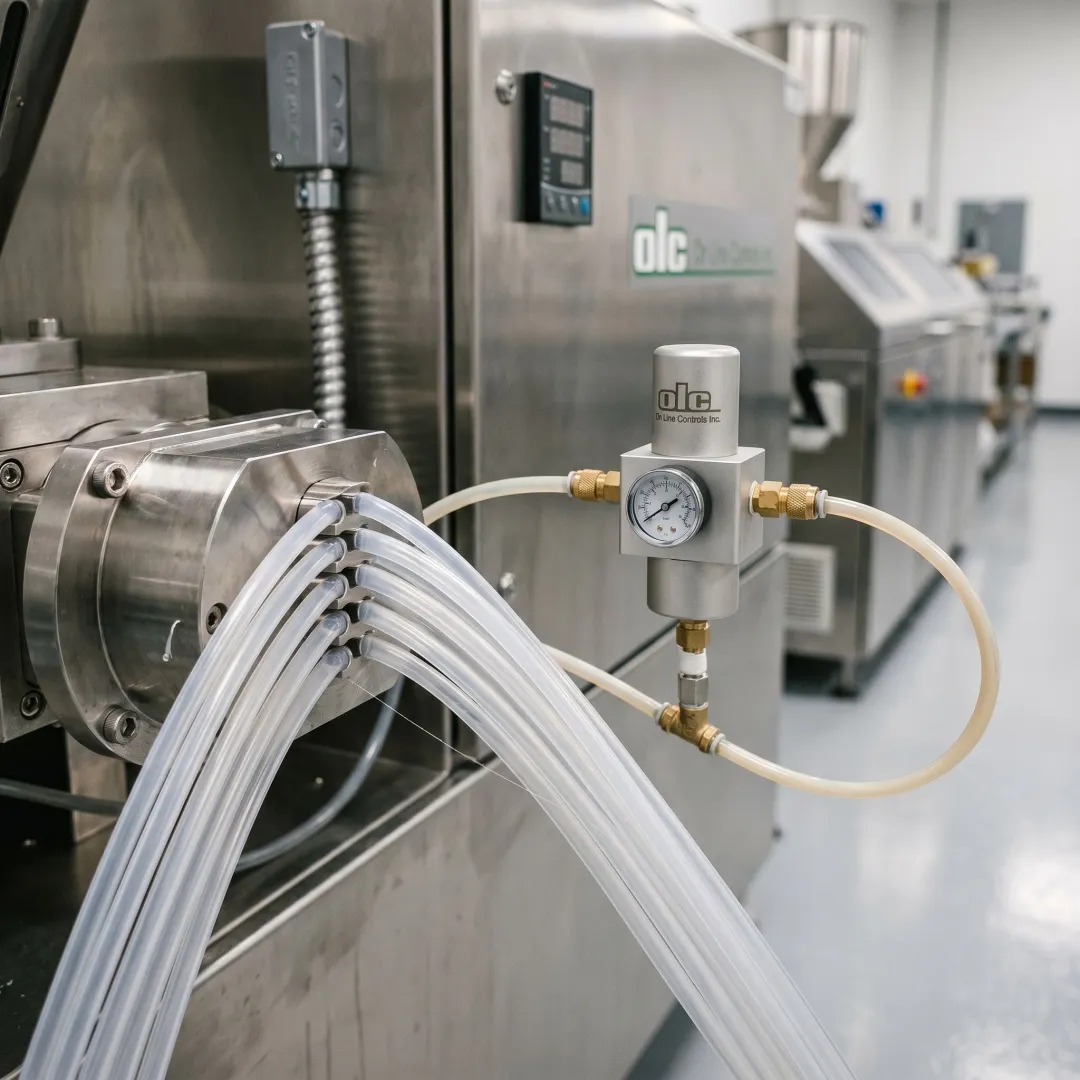

Yes. OLC offers multi-channel MicroAir units (dual, 3-channel, and 4-channel configurations) that provide independent pressure control for each lumen. Each channel can be set to a different pressure range and, on MicroAir IV models, can have its own digital display and output option, making them ideal for complex multi-lumen catheter manufacturing.

No calibration is required for MicroAir regulators. The viscostatic damping fluid provides inherently stable, hysteresis-free operation over the long term. With a design lifespan of 10–25 years and low maintenance requirements, MicroAir units are considered a long-term investment for extrusion operations.

Yes. All MicroAir regulators are CE compliant and ship internationally via UPS, DHL, or FedEx. On Line Controls serves customers in over 18 countries including Germany, Japan, China, France, India, and South Korea, and all units include a 3-year warranty on parts and labor with unlimited phone support.
