Multi-Lumen Tubing Dimensional Control Solution

A multi-lumen catheter is a medical device used to simultaneously perform multiple functions through a single insertion point — such as infusing fluids, withdrawing blood samples, and monitoring central venous pressure. Common applications include central venous access, dialysis, chemotherapy administration, and critical care monitoring. Each lumen serves an independent purpose, reducing the need for multiple catheter placements.

Multi-lumen refers to a tube or catheter that contains multiple separate internal passages, or lumens, within a single outer wall. The term comes from the Latin word 'lumen,' meaning an opening or channel. In tubing extrusion, each lumen must be independently pressurized with precisely controlled ultra-low air pressure to achieve accurate dimensions and consistent wall thickness.

A double lumen catheter has two independent internal channels, allowing two simultaneous functions such as fluid infusion and blood withdrawal. A triple lumen catheter has three channels, enabling a third concurrent function such as pressure monitoring or additional medication administration. Triple lumen catheters are common in ICU settings. Both require precise air pressure control during extrusion to maintain dimensional accuracy.

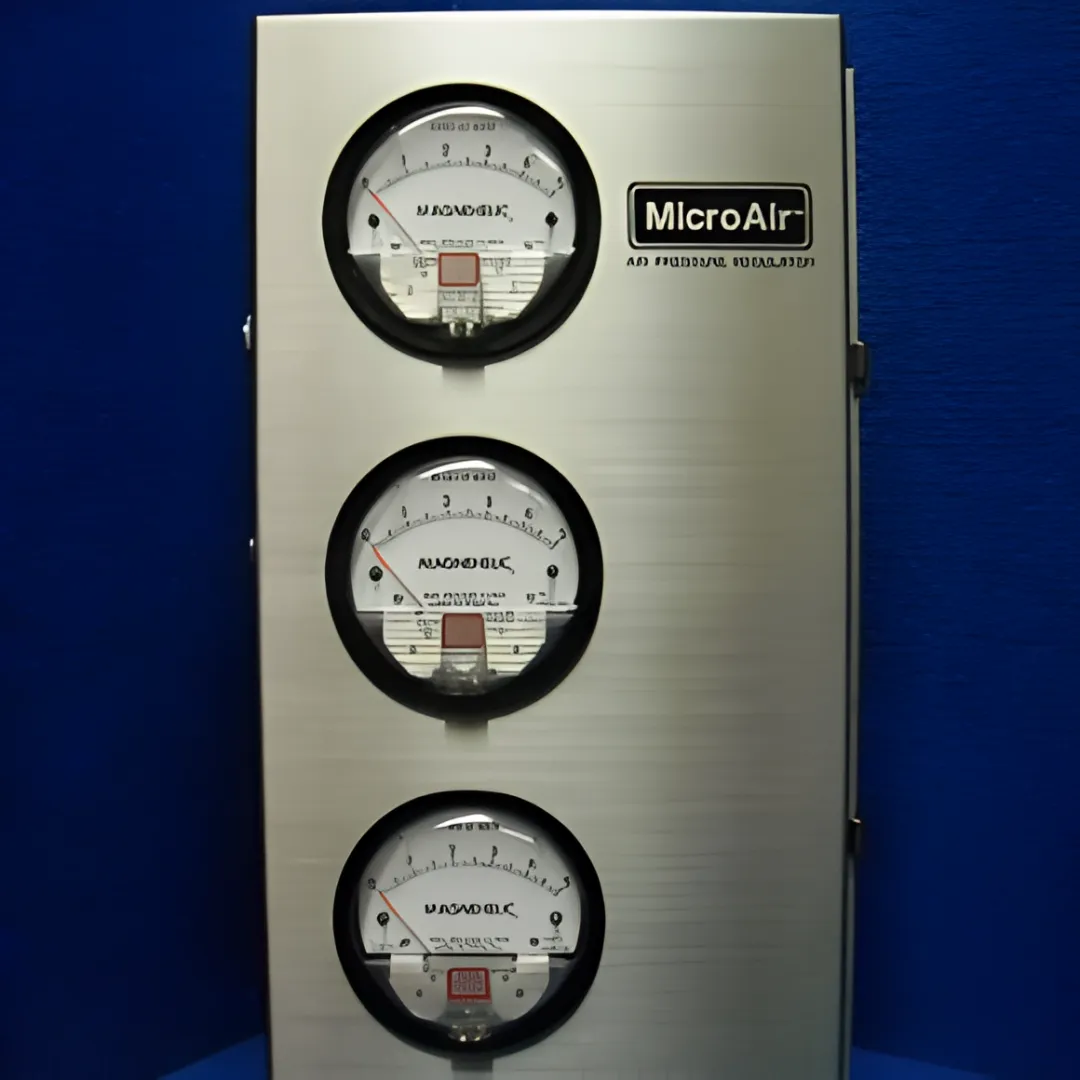

The number of channels required equals the number of lumens in your tubing. OLC offers single, dual, 3-channel, and 4-channel MicroAir regulators. Each channel independently controls the air pressure for one lumen, ensuring accurate diameter and wall thickness for every passage. For tubing with more than 4 lumens, contact OLC for a custom configuration discussion.

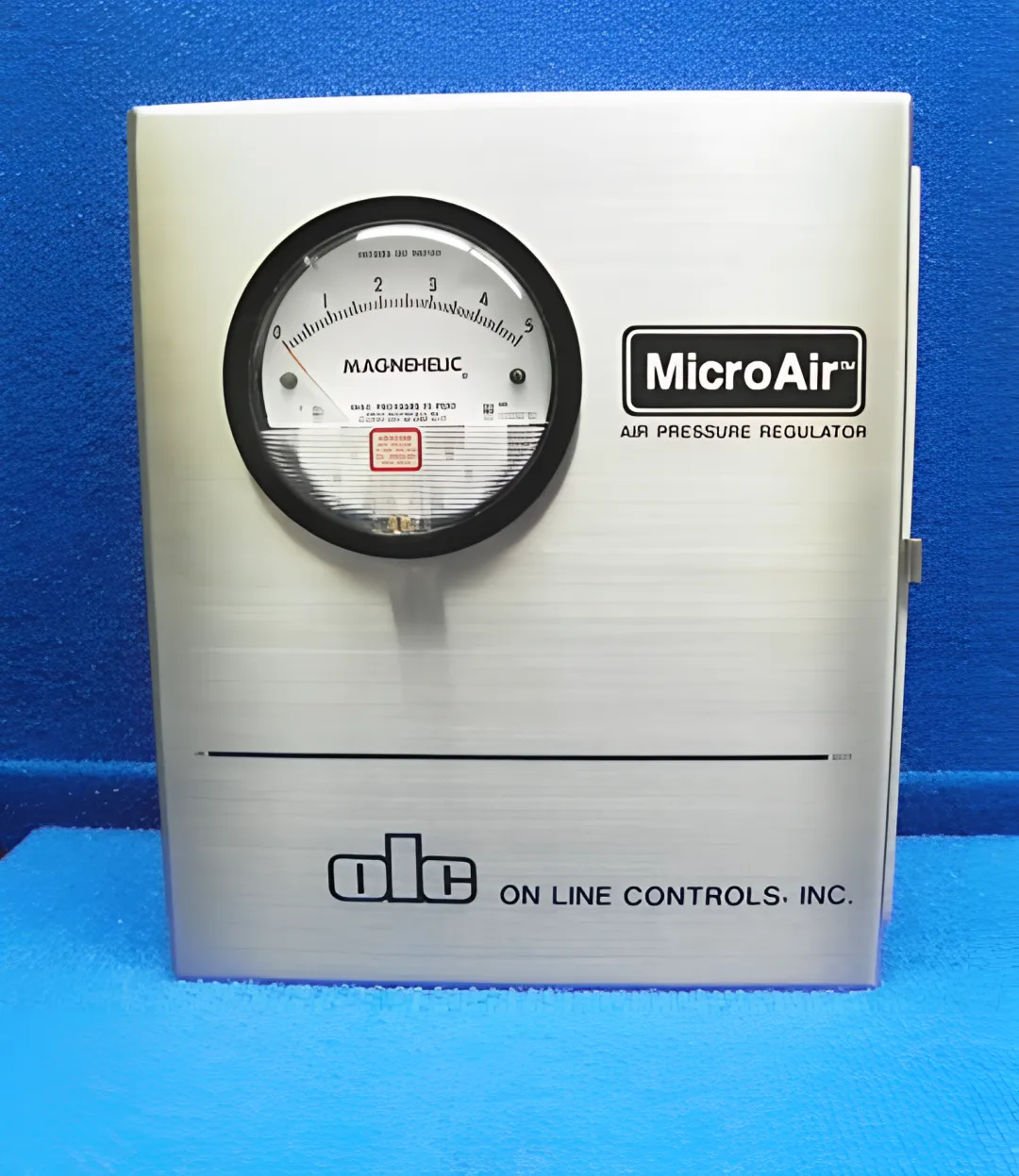

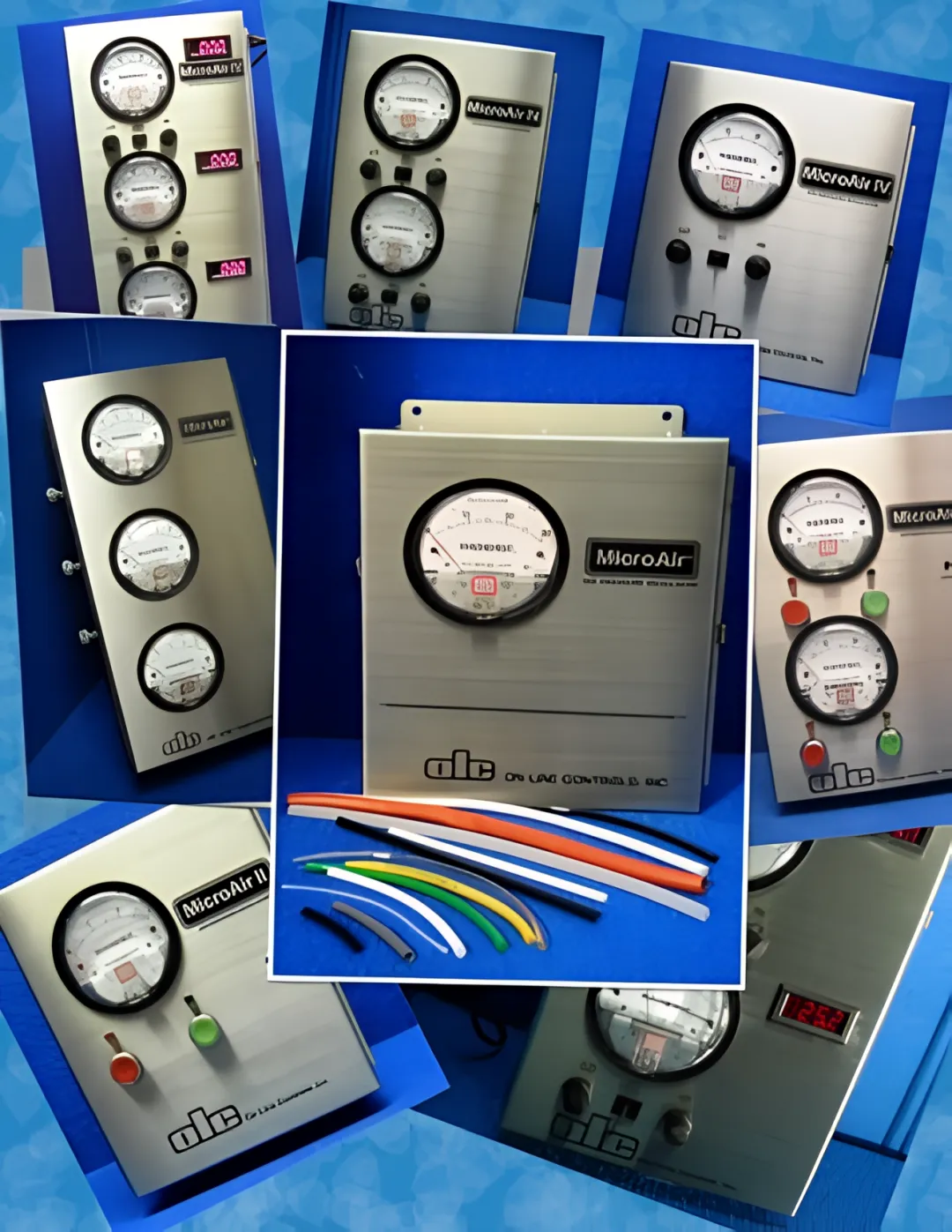

MicroAir I models use manual 30-turn knob control with standard response (~2 minutes). MicroAir II models add contact closure inputs from diameter gauges or PLCs for semi-automated control, also with standard response. MicroAir IV models accept 0-10V analog or PLC input and feature a precision voice-coil linear motor for high-speed response under 0.1 second — ideal for bump and taper tubing and automated extrusion lines.

Yes. MicroAir IV models accept a 0-10 volt analog input, making them fully compatible with PLCs and other automated control devices. They support three operational modes — Dual State, Linear, and Manual — and respond in under 0.1 second (typically 20 ms), making them suitable for high-speed programmable switching in bump and taper or multi-lumen extrusion applications.
