Servo Mount Potentiometers for Precision Control

A servo mount refers to the configuration where a motorized potentiometer is designed for integration into industrial control systems. These units feature panel mount designs with various housing options including anodized aluminum or thermoplastic, and can be configured as single, dual, or triple gang assemblies depending on the application requirements.

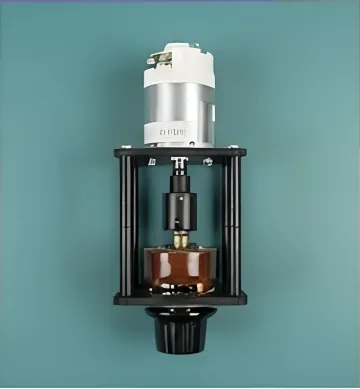

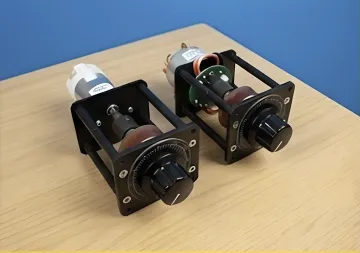

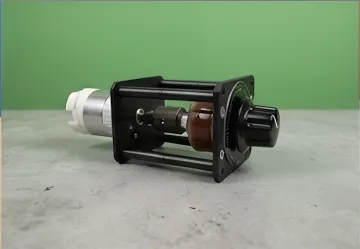

AC models use reversible 115 VAC motors with starting capacitors, while DC models operate on 6-24 VDC with Swiss-made geartrain systems. Both types feature slip clutch protection, but the choice depends on available power supply and specific application requirements for speed and torque control.

The slip clutch protects potentiometer end stops from damage and prevents gear train breakage during operation. It also allows for manual adjustment when motors are turned off, providing flexibility for maintenance and setup while ensuring long-term reliability of the motorized system.

Resistance ranges from 10 ohms to 100K ohms depending on the model and potentiometer type selected. Power ratings vary from 0.5W to 100W, with common options at 5W, 25W, and 50W. Specific values are determined by the application requirements and whether wirewound, conductive plastic, or hybrid element technology is used.

Yes, custom configurations are available including single, dual, or triple gang options with various wattage ratings and motor specifications. On Line Controls offers customization to meet specific industrial automation needs, including circuit board options and different terminal configurations.

Conductive plastic elements achieve up to 50 million turn life expectancy compared to 500,000 turns for wirewound elements because they provide infinite resolution with no physical contact wear. They also offer lower inductance and hysteresis-free operation, making them ideal for high-precision, long-duration applications.

On Line Controls offers a 3-year warranty covering parts and labor on their motorized potentiometers. They provide comprehensive repair and rebuilding services for their units, with customers reporting successful restoration of legacy equipment that has been in service for over 20 years, often at a fraction of replacement costs.
