MicroAir Regulator for Taper Tubing Extrusion

MicroAir regulators are available in ultra-low ranges starting from 0–3 inches of water up to 0–5 psi. Some models, such as the MultiAir 3-channel MicroAir I, extend to 0–30 inches of water and 0–3 psi. The appropriate range depends on your tubing material and extrusion process requirements.

MicroAir I uses a manual 30-turn knob for set-point control with standard response (~2 minutes). MicroAir II adds contact closure inputs for automatic control via a diameter gauge, also with standard response. MicroAir IV uses a 0-10V analog or PLC input with a precision voice-coil motor delivering high-speed response under 0.1 second, ideal for bump and taper tubing applications.

Yes. MicroAir IV models accept a 0–10V analog input and can be connected directly to a PLC or any control device. MicroAir II models accept contact closure inputs (Air Up / Air Down) from an O.D. diameter gauge or controller. This enables automated, closed-loop control of tubing outside diameter during continuous extrusion production.

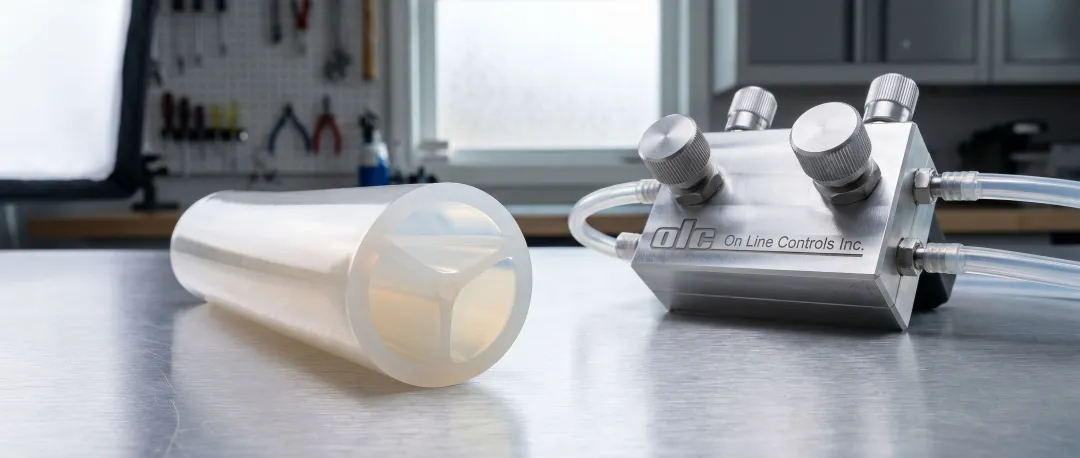

Single-channel units suit standard single-lumen tubing. Dual-channel units handle two-lumen products or simultaneous OD and sizing air control. Three-channel and four-channel MultiAir units are designed for complex multi-lumen catheter and medical tubing where each lumen requires independent, individually ranged pressure control.

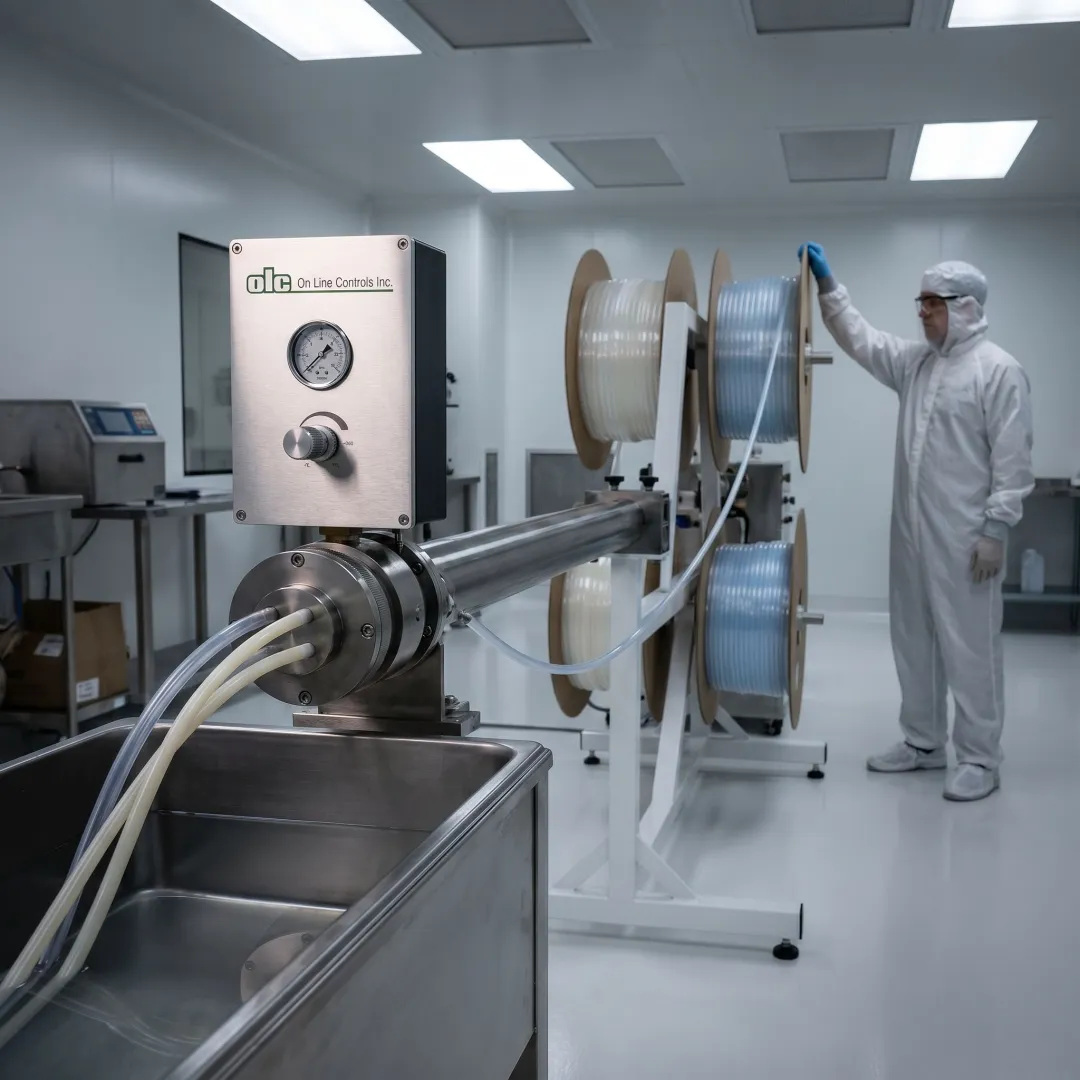

Yes. MicroAir regulators are widely used in medical tubing and catheter manufacturing, where dimensional tolerances are critical. Their hysteresis-free operation, sub-0.1-second response on IV models, and accuracy of +/- 0.1% of full scale make them well-suited for FDA-sensitive production environments requiring consistent, repeatable tubing geometry.

All MicroAir regulators include a 3-year warranty on parts and labor with unlimited phone support. A range change service is also available—free within 30 days of purchase on select models. Products are designed for a 10–20+ year service life with minimal maintenance and no calibration required, reducing total cost of ownership significantly.
