MicroAir Regulator for Balloon Tubing Extrusion

MicroAir regulators are available in a range of ultra-low to low pressure options, from 0–2" of water and 0–3" of water at the ultra-low end, up to 0–5 psi for higher-pressure applications. Multi-range models can cover 0–3", 0–5", 0–10", 0–15", and 0–30" of water as well as 0–3 psi and 0–5 psi, giving manufacturers flexibility across different tubing profiles and materials.

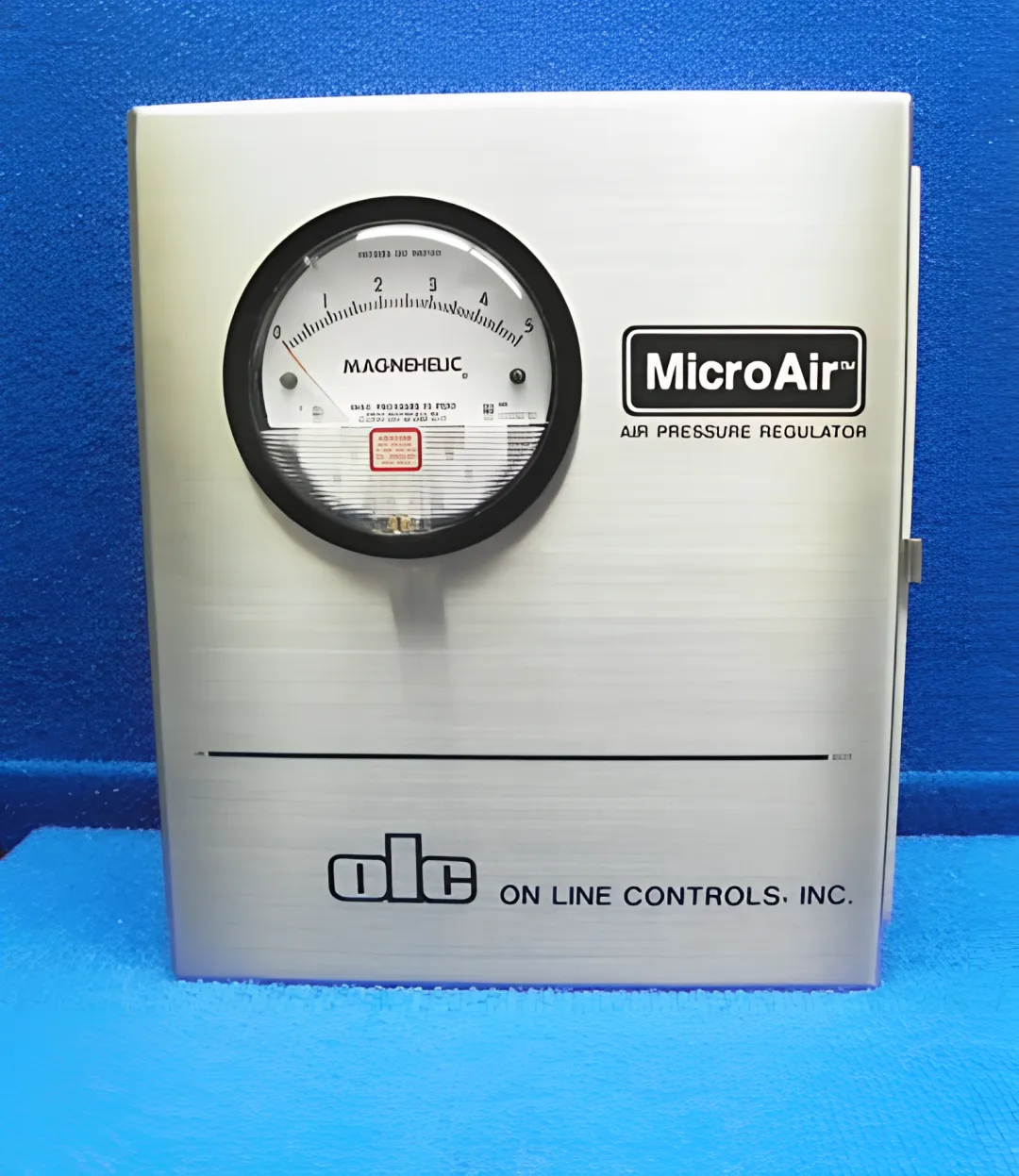

MicroAir I uses a simple 30-turn manual knob for set-point adjustment and provides standard response times (~2 minutes to full scale). MicroAir II adds contact closure inputs from OD gauges or external controllers with dual-speed up/down buttons. MicroAir IV features a high-speed voice-coil motor accepting 0–10V analog or PLC input, with response times under 0.1 second — ideal for bump and taper tubing applications.

Yes. MicroAir II models accept Air Up / Air Down contact closure signals from OD gauges or external controllers for automated diameter correction. MicroAir IV models accept 0–10 volt analog input, enabling direct PLC integration for programmable, high-speed pressure switching — particularly valuable in bump and taper tubing and automated extrusion lines requiring closed-loop diameter control.

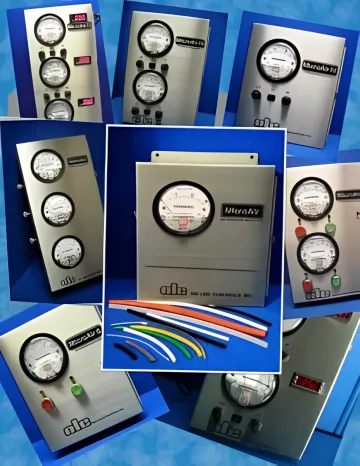

The number of channels corresponds to the number of lumens you need to control independently. Single-channel units are suited for standard single-bore tubing. Dual-channel units control two lumens simultaneously with independent set points. The 3-channel and 4-channel MultiAir units provide separate pressure regulation for each lumen, with each channel capable of having its own range, display, and output option.

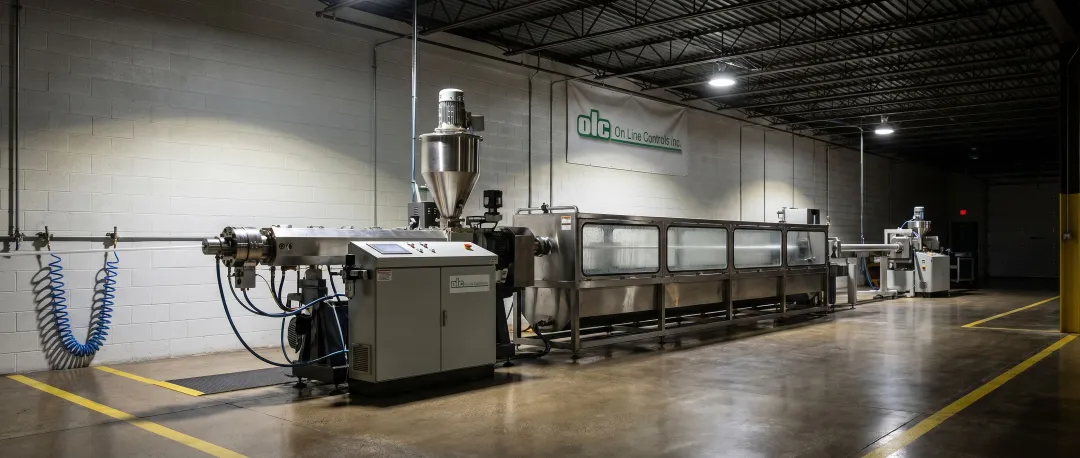

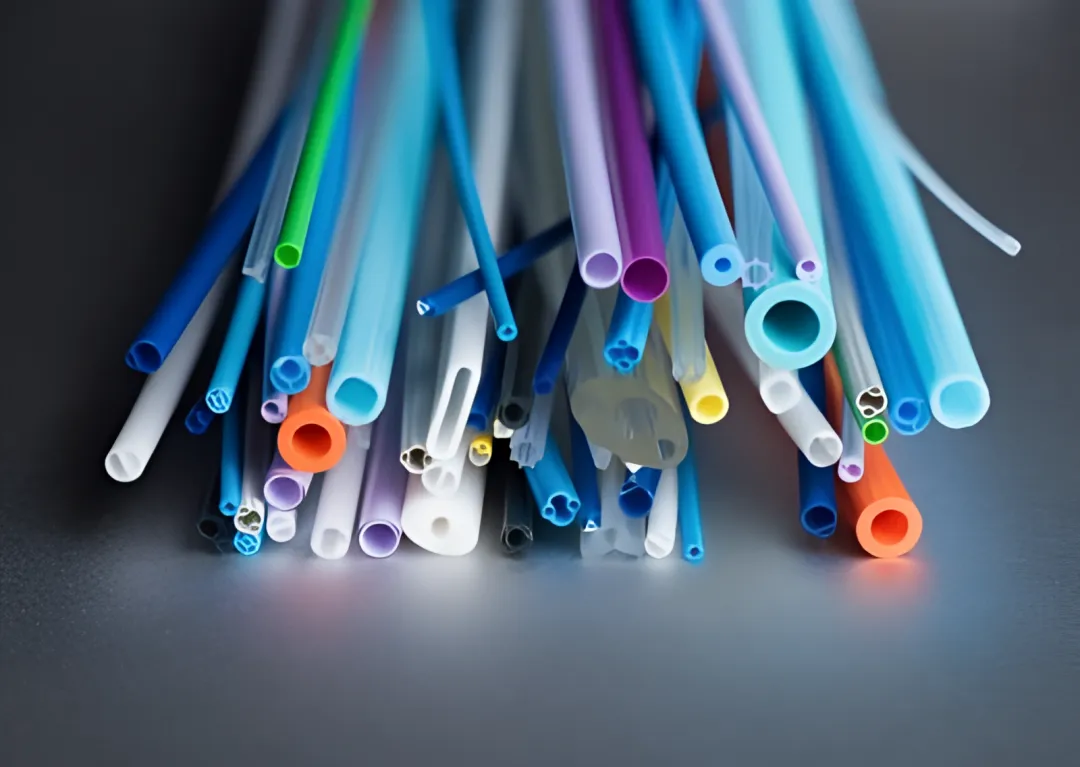

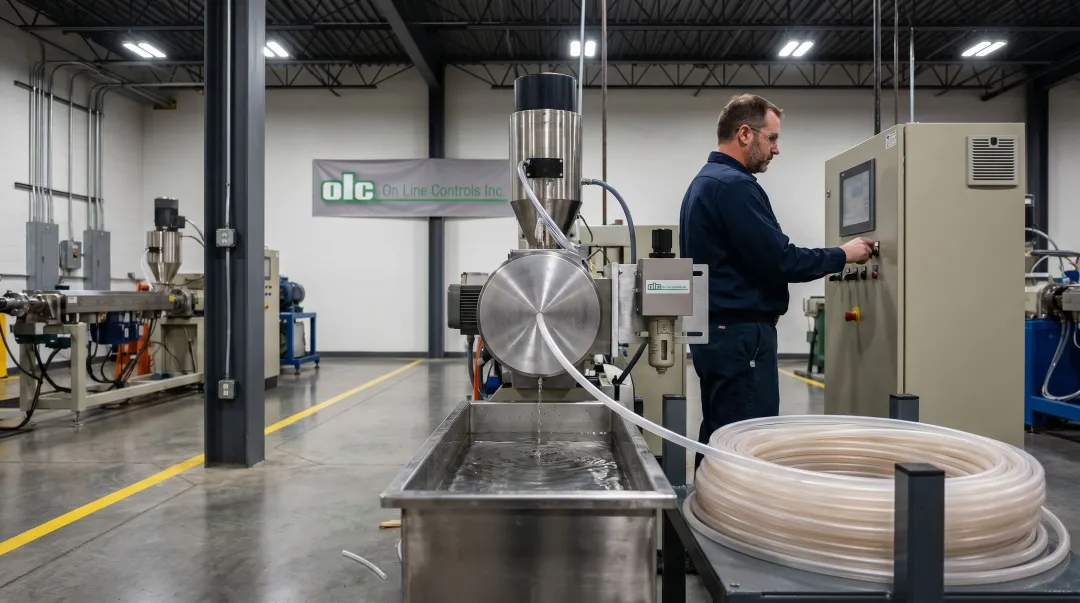

MicroAir regulators are engineered for medical tubing extrusion (including catheters and multi-lumen tubing), automotive tubing production, bump and taper tubing, plastic profile extrusion, and plastic straw manufacturing. They are trusted by leading extruder OEMs including Davis-Standard, Conair, Graham/AK Brand, and Gimac, and are used in manufacturing facilities across 18 countries.

No calibration is required — MicroAir regulators are factory set and maintain accuracy without periodic recalibration. The damping fluid used in the regulating mechanism is sealed and does not contact process air, minimizing maintenance needs. The units are built for a service life of 10–20+ years. On Line Controls also offers a range change service if your process pressure requirements change after purchase.
