10K Dual Gang Potentiometers

Wirewound potentiometers offer high resolution and linearity, making them suitable for precision applications, but typically have a shorter life expectancy of 500,000 to 2 million turns. Conductive plastic versions provide significantly longer life — up to 10 million turns — with smoother operation and are better suited for high-cycle applications such as speed controls, flow meters, and tensioning motors.

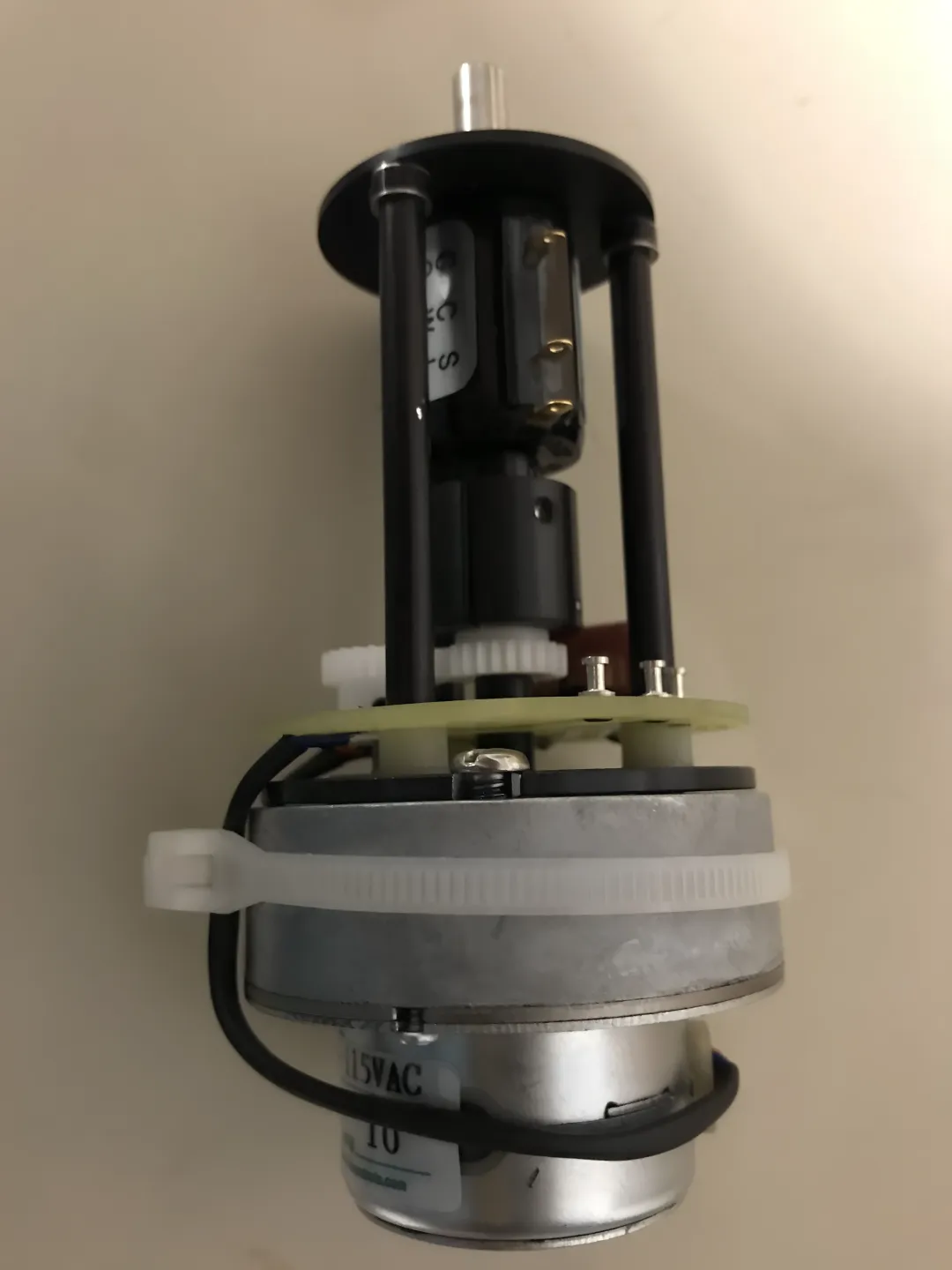

Yes. On Line Controls offers 10K dual gang potentiometers with both AC and DC motor configurations. DC versions operate at 6, 12, or 24 VDC at speeds from 1 to 120 RPM. AC versions use a reversible 115 VAC motor at speeds of 1 to 15 RPM and include a starting capacitor and dynamic braking diode for reliable, controlled operation.

The slip clutch is a critical protective feature factory-set in every motorized potentiometer. It protects the potentiometer's end stops from mechanical overload, prevents gear train breakage, and allows for manual shaft adjustment when the motor is powered off. Important: adjusting the clutch setting yourself may void the warranty and render the unit inoperable.

The 10K/10K configuration is the primary resistance pairing, but other dual gang options include 1K/1K, 2K/2K, 3K/3K, 5K/5K, 5K/10K, and 2K/3K depending on the model series. Both wirewound and conductive plastic element types are available across these resistance values to suit various control and feedback requirements.

Yes. On Line Controls operates an in-house service department that repairs and rebuilds older motorized potentiometers, including legacy ETI Systems models. Units can be returned to the facility in Shrewsbury, MA for service. Repair availability depends on available parts, and the factory-set clutch must not be adjusted to preserve warranty coverage.

These potentiometers serve a wide range of demanding industries. Common applications include oil rigs, asphalt plants, printing presses, aircraft and helicopter simulators, medical equipment, power plants, and robotics systems. Any industry requiring remote proportional control combined with position feedback — such as speed control, flow metering, or tensioning — can benefit from dual gang motorized potentiometers.
