DC Motorized Potentiometer

Motorized Potentiometers with DC motors

High precision Proportional Controls for automating analog driven devices with motor.
Slip Clutch to protect potentiometer
Combine Pot and motor in a small, efficient package

* Replacements for old ETI Systems Motorized Potentiometers built in the 1980 and 1990s

Motorized Potentiometers with DC Motors

The MC and ME are DC Motorized Potentiometer Series perform best at low (5-20ma) currents. Choose from 6, 12 or 24 VDC and 1, 3, 5, 10, 18, 35, 61, or 120 RPMs with other RPMs available. (RPM’s are +/- 20%). Two Six (6”) inch lead wires are attached to the motor — one red and one black.

Potentiometers – single or 10 turn; wirewound or conductive plastic; single, dual or triple gang.
Resistances values are 10, 20, 50, 100, 200, 500 ohms, 1K, 2K, 5K, 10K, 20K, 50K, and 100K depending on model.
Diagrams available by email – Length measurement depends on RPM’s required and therefore the motor and geartrain used.
Length can vary +/- .5 inch depending on motor and geartrain used to get the correct RPMs.
DC Motors – High quality micro motion motors renowned for their compact size, precision, efficiency and performance with a precision gearheads.

Type of Potentiometer	Watt	Resistance	Description	Model	Dimensions

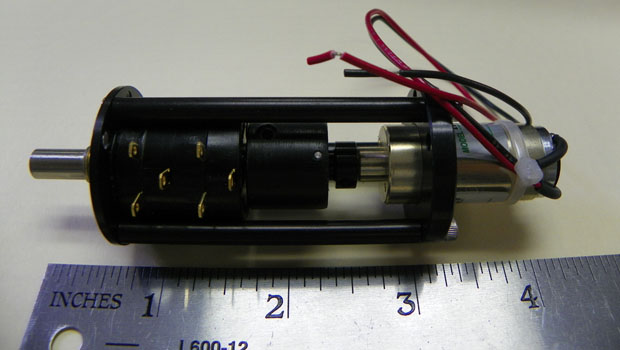

Single turn wirewound	0.5	10 ohm to 20K	General purpose with gold plated terminals for solderless assembly with AMP model 110 S connectors on pot. Pot life expectancy 500,000 turns.	MC2E MC2ED (Dual gang)	1 3/8″ Dia x 3.76″L Dual 4.25″L
Single turn Conductive plastic	1	50 ohm to 20K Standard	General Purpose with glold plated terminals. Pot life expectancy 10 million turns.	MC2P MC2PD (Dual gang)	1 3/8″ Dia x 3.76″L 5.5″L
Single turn Conductive plastic	1	500 ohm to 100K	One piece Japanese motor geartrain used. 24 VDC, 20 RPM normal. Same pot as MC2P.	ME2P	1 1/4″Dia X 5.4″L
3 turn hybrid	1	1K to 100K	Longer rotational life. Pot life expectancy 10 million turns.	MC5146B	7/8″Dia x 4 3/4″ L
10 turn wirewound	2	100 ohm to 100K	General Purpose – in housing. Long life, two million turns. High reliability, space saving design.	MC20-1	7/8″ Dia x 4 3/4″ L

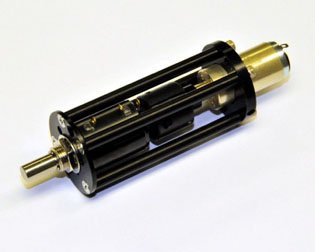

10 turn wirewound	2	100 ohm to 100K	Same high quality as MC20-1 in rugged, open-frame cage.	MC20A	1 1/4″Dia x 4 3/4″ L
10 turn wirewound	2	1K/1K, 2K/2K, 5K/5K, 10K/10K, 2K/3K, 5K/10K	Dual gang for feedback systems. Same potentiometer as MC20A. One pot section for control, the other supplies position to your system.	MC20-2	1 1/4″Dia x 5 3/4″ L
10 turn wirewound	2	100 ohm to 100K	For industrial applications. Pot life expectancy 1 million turns..	MC2W	1 3/8″Dia x 4″ L
10 turn wirewound	2	5K/5K/5K normal. Others available.	Triple gang potentiometer for feedback.	MC5022	1 1/4″Dia x 7″ L
10 turn wirewound	2	100 ohm to 100K	One piece Japanese motor geartrain used. 24 VDC, 20 RPM normal.	ME2W	1 1/4″Dia x 6″ L

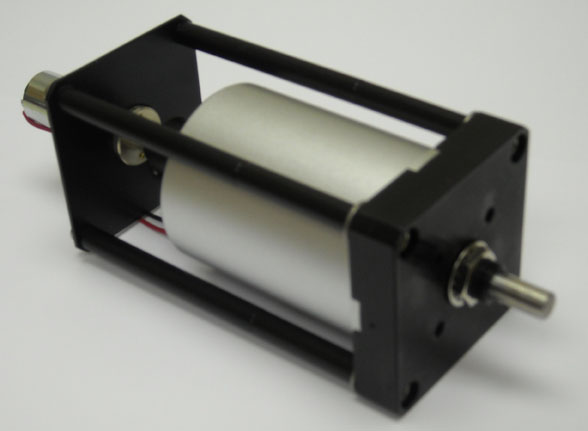

10 turn wirewound	5	100 ohm to 100K Normal 1K	Approximately 2″ diameter. Potentiometer has ball bearings.	MC5168	2″ Square x 6 3/4″ L

Potentiometer Considerations:

Resistance value (ohmage). 10, 20, 50, 100, 200, 500 ohms, 1K, 2K, 5K, 10K, 200K 50K, 100K depending on model.**
Wattage (.5, 1, 2, or 5 watt)
Type – conductive plastic, hybrid or wirewound
Single turn or 10-turn.
Single, dual or triple gang for feedback purposes

Motor Considerations:

Also Available are: MC20-3 (replaced with MC20-1 and dial), MC20-4, MC20-5, MC46-2, MC46-4, MC46-5, MC5000, MC5022A-5K/5K/5K, MC5054A, MC5058, MC5059, MC5070, MC5097A, MC5139A, MC5179A, MC5190, MC5215, MC5224, MC5248, MC5290, MC5312, MC5321, MC5324 and MC5342Other Models still available. Please Contact Us to check any MC numbers for older ETI units.

Dials available for Motorized Potentiometers:

Dial to be attached by customer.

* DB10 Square digital – counts up to 10 turns, Height 1-3/4″, Width 1″

* MF46 Large Round – counts up to 20 turns, 100 dial graduations, diameter 1 13/16″

* MF25 Medium Round – counts up to 10 turns, diameter 1″

* MF22 Small Round – counts up to 20 turns, diameter 7/8″

* Motors and geartrains are SWISS made.
